Mastering the Width Adjustment on a Roll Forming Machine: A Step-by-Step Guide

In the dynamic world of metal fabrication, the ability to adapt quickly to new project specifications is a significant competitive advantage. One of the most common and critical tasks an operator will face is the width adjustment on a roll forming machine. Whether you are switching from producing roofing panels to wall cladding, or changing the size of a purlin, understanding how to perform this adjustment correctly is vital for preventing material defects like oil canning and ensuring dimensional accuracy .

This comprehensive guide will walk you through the general process of changing the width on various types of profile roll forming machines, highlighting both manual and automatic methods. By mastering these steps, you can minimize downtime and maximize the flexibility of your manufacturing line .

Why Proper Width Adjustment Matters

Before diving into the "how," it is important to understand the "why." A correct width adjustment ensures that the metal strip runs centrally through all forming stations. Misalignment can lead to:

• Material Waste: Scrap parts from improperly formed profiles.

• Tooling Damage: Uneven wear or collision between the tooling and the strip.

• Machine Downtime: Time spent troubleshooting and re-adjusting .

Safety First: Preparing for Adjustment

Safety should never be compromised. Before making any physical changes to your machine:

1. Power Down: Ensure the machine is completely isolated from the power source. Apply a lockout tagout system to the power plug to prevent accidental startup .

2. Secure the Shear: If your machine has a cutting shear, place it in the "up and lock" position. Always work in front of or behind the shear, never through it .

3. Consult the Manual: Always refer to your specific machine's manual for model-specific instructions.

Method 1: Manual Width Adjustment (Using Spacers and Guides)

For many stud and track roll forming machines or dedicated roof panel machines, width changes are performed manually. This is a cost-effective method for machines that do not require frequent size changes . Here is the general procedure:

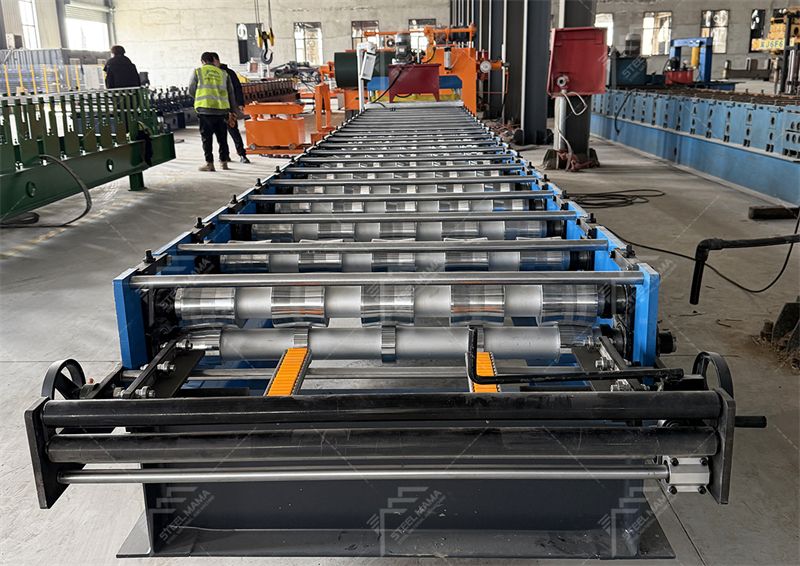

1. Adjusting the Entry Guides

The feeding device is the "gateway" for your material. It must be set accurately to the new coil width.

• Prepare a Sample: Cut a piece of material (e.g., 18 inches long) to the new width and trim the corners. This helps guide it into the entry section smoothly .

• Set the Guides: Loosen the collars on the entry guide. On most machines, one side is stationary. Slide the adjustable side inward until it touches the material snugly, but without applying excessive pressure. Tighten the collars to secure this new position .

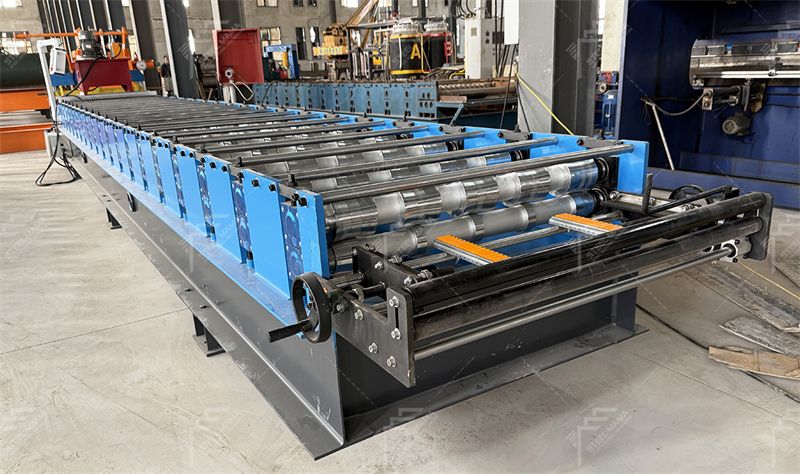

2. Aligning the Roller Stands (Rails)

This is the heart of the width adjustment process. You will need to adjust the position of the side rollers or rails (often labeled L1, L2, L3) along the length of the machine.

• Sequence: Usually, you start from the entry end (L1) and work your way to the exit (L3) .

• The Spacer Method: On machines like C purlin or Z purlin roll forming machines, operators use spacers. These are metal blocks inserted between the rollers to set the exact distance required for the new profile. You simply remove the old spacer, insert the new one of the required thickness, and secure the rollers against it .

• Alignment Check: After moving a rail, tighten the mounting bolts and measure the distance to a reference point (like a string line) to ensure it is perfectly parallel and aligned with the other rails .

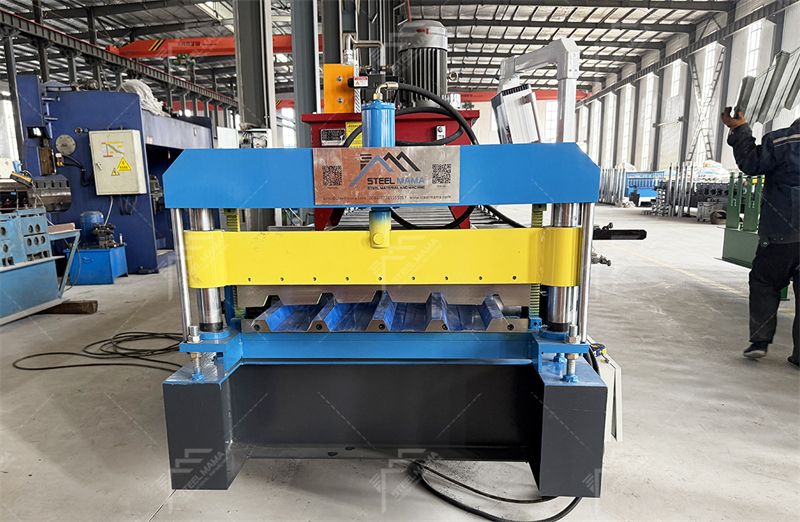

3. Adjusting the Shear Dies

Once the material path is set, the cutting station must be adjusted to match the new width.

• Feed Through: Run a test piece (4-5 feet long) through the machine.

• Align Dies: Loosen the bolts on the left shear die (usually the adjustable side) and slide it until it contacts the material. Align both the inside and outside dies correctly before securing them .

4. The Test Cut

After all mechanical adjustments are made, remove the lockout tagout and perform a test cut.

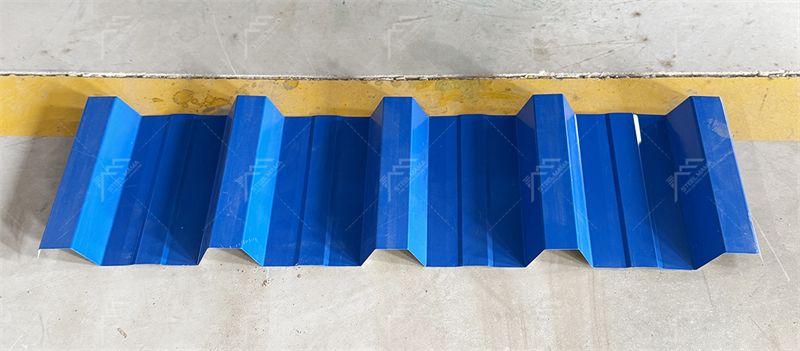

• Inspect: Measure the cut piece meticulously. Check the width, flange lengths, and profile depth.

• Re-adjust: If the dimensions are off, reapply the lockout tagout and make fine adjustments. Repeat until the profile meets specifications .

Method 2: Automatic Width Adjustment

For high-mix, low-volume production environments, auto adjusting feeding devices and stepless width adjustment systems are game-changers. These are common on versatile standing seam machines or heavy-duty c/z purlin machines .

• Mechanism: These systems use low-power motors on either side of the feed end. When a new width is entered into the control system, the motors work in tandem to drive the feed plates and entry guides laterally to the exact position .

• Advantage: This eliminates manual measuring and wrench work, drastically reducing changeover time and increasing precision, especially for automatic roll forming lines.

Common Challenges and Troubleshooting

Even with a precise setup, issues can arise. Here are a few things to watch for:

• Material Twist or Camber: This often indicates that the rollers on one side of the machine are applying pressure before the other. Re-check the alignment of your L1, L2, and L3 rails to ensure they are square to the line .

• Dimensional Inconsistency: If the finished product width varies, check the material thickness tolerance. Variations in the incoming coil thickness can affect the developed width of the final profile. You may need to fine-tune the roller pressure to compensate .

• Feeding Issues: If the material snags at the entry, ensure the corners are trimmed and the entry guides are not too tight. The guide should support the material, not squeeze it .

Conclusion

The ability to perform a quick and accurate width adjustment on a roll forming machine is a fundamental skill for any modern metal fabricator. Whether you rely on the simplicity of manual spacers or the speed of automatic motorized guides, a systematic approach ensures quality and efficiency.

By following these steps—prioritizing safety, methodically adjusting the entry guides and roller stands, and always verifying with a test cut—you can ensure your roll forming machine delivers perfect profiles, job after job.
