The Ultimate Guide To The C Stud And U Track Profile Keel Roll Forming Making Machine: Precision, Speed, And Durability

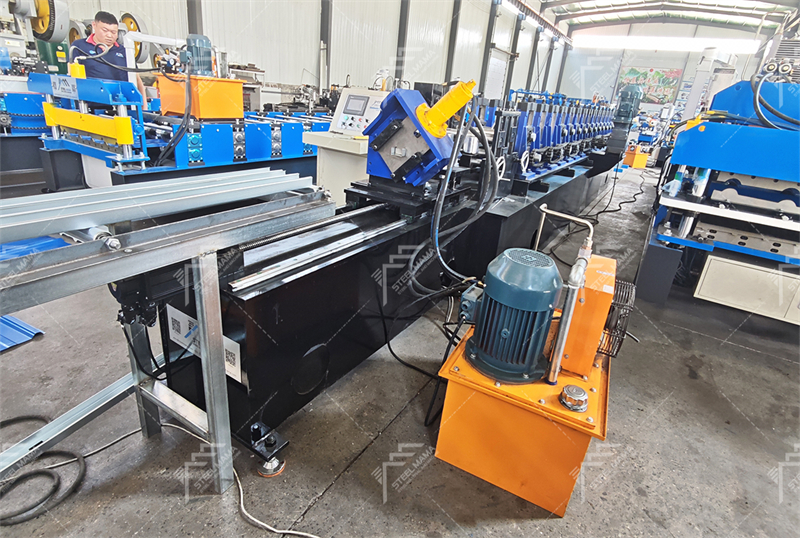

C Stud and U Track Roll Forming Machine is a highly automated system used to continuously process galvanized metal coils into light-gauge steel keels. These profiles are widely used for the structural framing of interior drywall partitions and suspended ceilings in residential and commercial construction.

Key Specifications & Features

Material Thickness: Processes coils typically ranging from 0.25 mm to 1.2 mm.

Production Speed: High-efficiency lines can reach speeds of 40 m/min or more.

Efficiency: Many modern machines feature "flying shears" for continuous, no-stop cutting to exact lengths, as well as the ability to produce both C and U profiles on a single machine or simultaneously.

Automation: Complete lines include a decoiler, roll-forming host, hydraulic post-cutting system, and programmable PLC control for seamless production.

Typical Machine Components

Uncoiler / Decoiler: Holds and feeds the flat metal coil into the machine.

Roll Forming System: A series of heavy-duty, chrome-plated rollers that gradually bend the flat strip into the desired C or U shape.

Cutting Device: Hydraulic or motor-driven shears to cut the formed profiles to custom lengths.

Control System: PLC panel that allows operators to program lengths and quantities accurately.

In the rapidly evolving world of light-gauge steel framing and drywall construction, efficiency is king. Whether you are a manufacturer of ceiling systems, a contractor working on large-scale commercial partitions, or a supplier of structural components, the quality of your framing materials dictates the success of your project. At the heart of this production lies a piece of equipment that has revolutionized the industry: the C Stud And U Track Profile Keel Roll Forming Making Machine.

This article provides an in-depth analysis of this versatile machinery, exploring its technical specifications, operational advantages, and why it is the cornerstone of modern steel frame production. If you are looking to upgrade your production line or enter the steel framing market, understanding the nuances of the keel roll forming machine is your first step toward higher profitability.

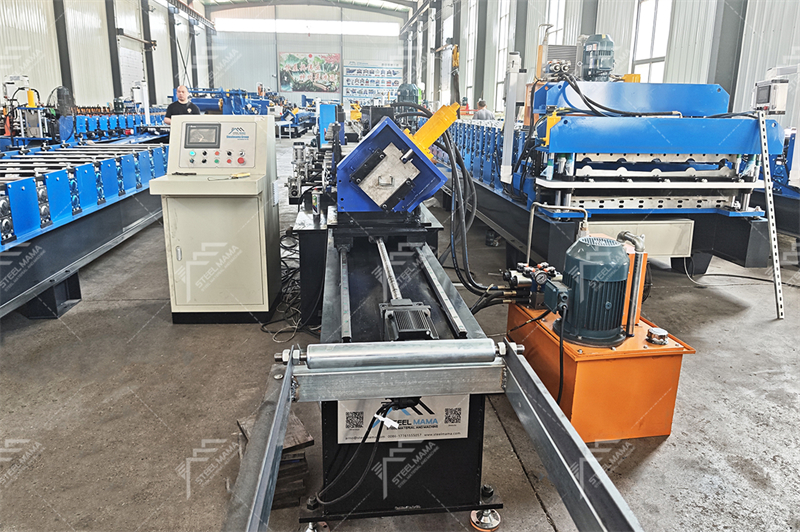

What is a C Stud And U Track Profile Keel Roll Forming Making Machine?

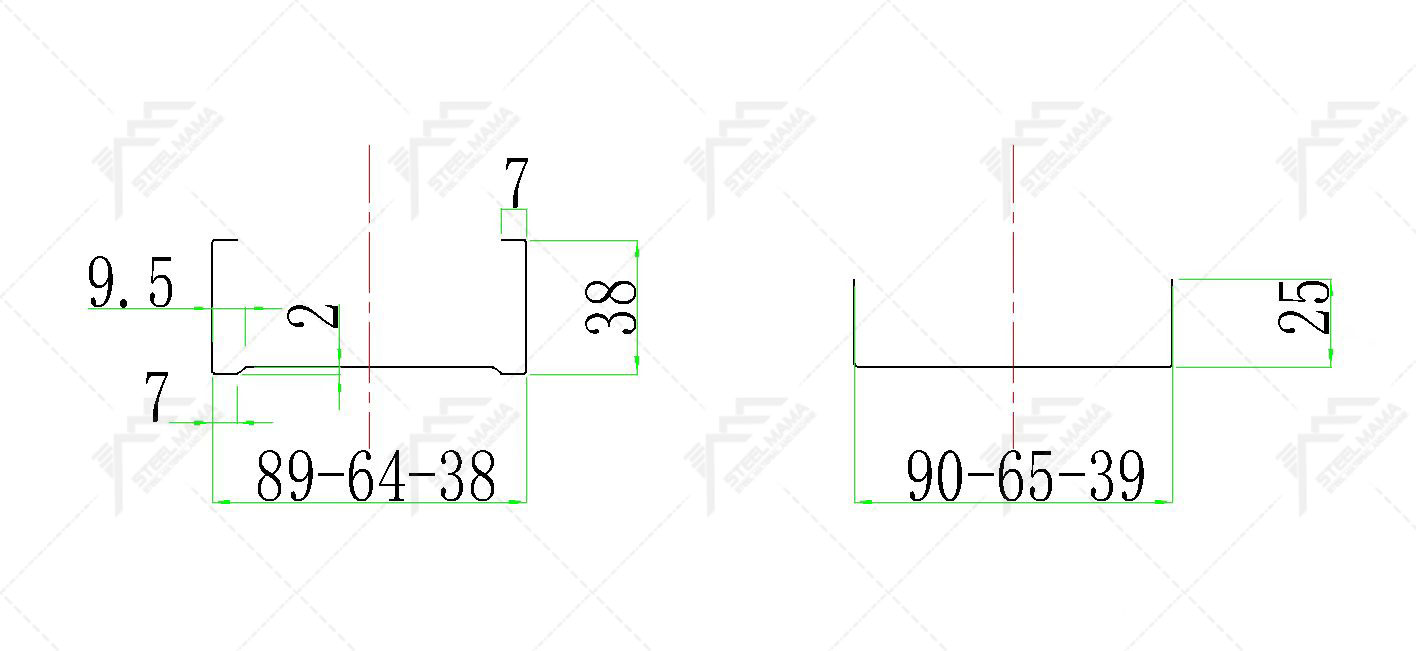

To understand its value, we must first define its function. This specific roll forming making machine is a high-speed production unit designed to convert galvanized steel coils or cold-rolled steel strips into precise "C" shaped studs and "U" shaped tracks. These profiles are the primary components used in drywall partition systems, suspended ceilings, and exterior cladding supports.

The term "keel" is widely used in Asian and European markets to refer to the lightweight steel framework used in ceilings, making the C and U Profile Keel Roll Forming Machine an essential asset for exporters targeting these regions. The machine performs a continuous bending operation via a series of progressive stations. Unlike press braking, roll forming offers exceptional consistency, making it the preferred method for producing long-length profiles with tight dimensional tolerances.

Key Technical Features of the Roll Forming Machine

When investing in a keel roll former, you are not just buying a press; you are investing in the engineering integrity of your products. Modern versions of the C Profile Stud cold Roll Forming Machine incorporate advanced technologies to ensure maximum uptime and minimal material waste.

1. Heavy-Duty Frame and Roller Stations

The foundation of any reliable roll forming equipment is its frame. High-quality machines utilize a rigid steel structure that absorbs the immense stress of cold-forming steel. The roller stations are crafted from hardened GCr15 bearing steel, ground to a mirror finish. This ensures that the C stud profile maintains a straight, true shape without twisting, a common issue with lower-grade machinery.

2. PLC Control System for Precision

Modern manufacturing demands automation. A premium C Stud And U Track Profile Keel Roll Forming Making Machine is equipped with a Siemens or Omron PLC (Programmable Logic Controller) and a precise encoder. This allows the operator to adjust the cutting length and quantity with the touch of a button. The automatic roll forming line can switch between C and U profiles with minimal downtime, making it an incredibly flexible solution for just-in-time manufacturing.

3. Quick Changeover Mechanisms

One of the most significant advantages of a cutting-edge U track roll forming machine is its ability to handle varying thicknesses (usually ranging from 0.4mm to 1.2mm) and widths. High-end models feature a spacer system that allows for quick changeover between different gauges, ensuring that your production line is never idle for long.

Advantages of Using a Keel Roll Forming Machine in Construction

Why should a factory choose this specific forming machine over traditional extrusion or press brake methods? The answer lies in cost-effectiveness and material strength.

• Material Savings: By using a cold roll forming process, the steel is work-hardened. This means you can use a thinner gauge of steel to achieve the same structural strength as a thicker, heavier piece. This reduces the raw material cost per meter of the steel stud roll former output.

• Unmatched Speed: A standard roll forming line can operate at speeds of up to 12–15 meters per minute. This rapid production cycle ensures that you can fulfill large orders for commercial buildings or high-rise residential projects within tight deadlines.

• Dimensional Accuracy: The bending process is sequential, eliminating the "spring back" effect often seen in other forming methods. This ensures that the C studs and U tracks fit together seamlessly on the job site, reducing installer frustration and construction delays.

The Production Process: From Coil to Finished Profile

Understanding the workflow of the C Stud And U Track Profile Keel Roll Forming Making Machine helps in troubleshooting and maintenance.

1. Uncoiling: A heavy-duty decoiler holds the steel strip and feeds it into the machine at a controlled tension. An uncoiler with hydraulic expansion is recommended for heavy coils.

2. Feeding and Leveling: The strip passes through a pre-leveling unit to remove any coil curvature. This is a crucial step for the roll forming process to ensure straightness.

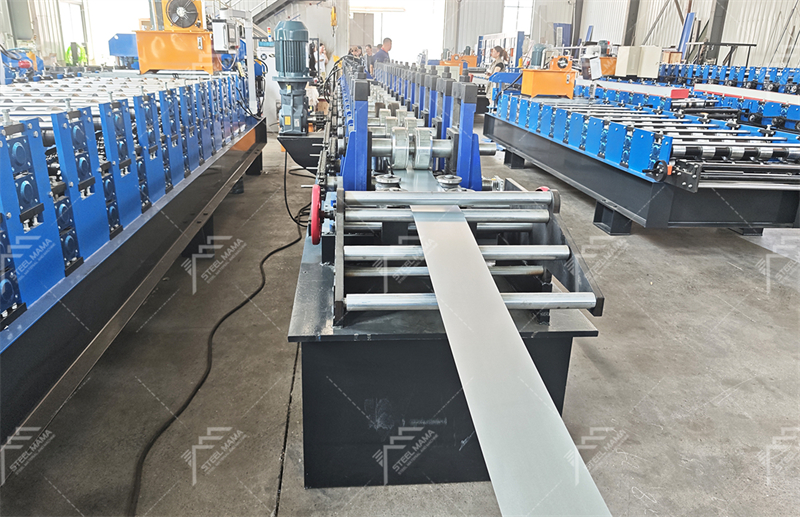

3. Roll Forming: The steel passes through the main roll forming mill, which consists of upper and lower rollers. As the strip moves forward, each station bends the metal a little more until it reaches the final "C" or "U" shape.

4. Cutting: A hydraulic cutting system, controlled by the PLC, shears the profile to the required length. This can be a flying cut-off type, which cuts the material without stopping the production line, or a stop-cut type for heavier gauges.

5. Collection: The finished steel frame profiles are then collected on a run-out table, ready for bundling and shipping.

Why "C" and "U" Profiles are Industry Standards

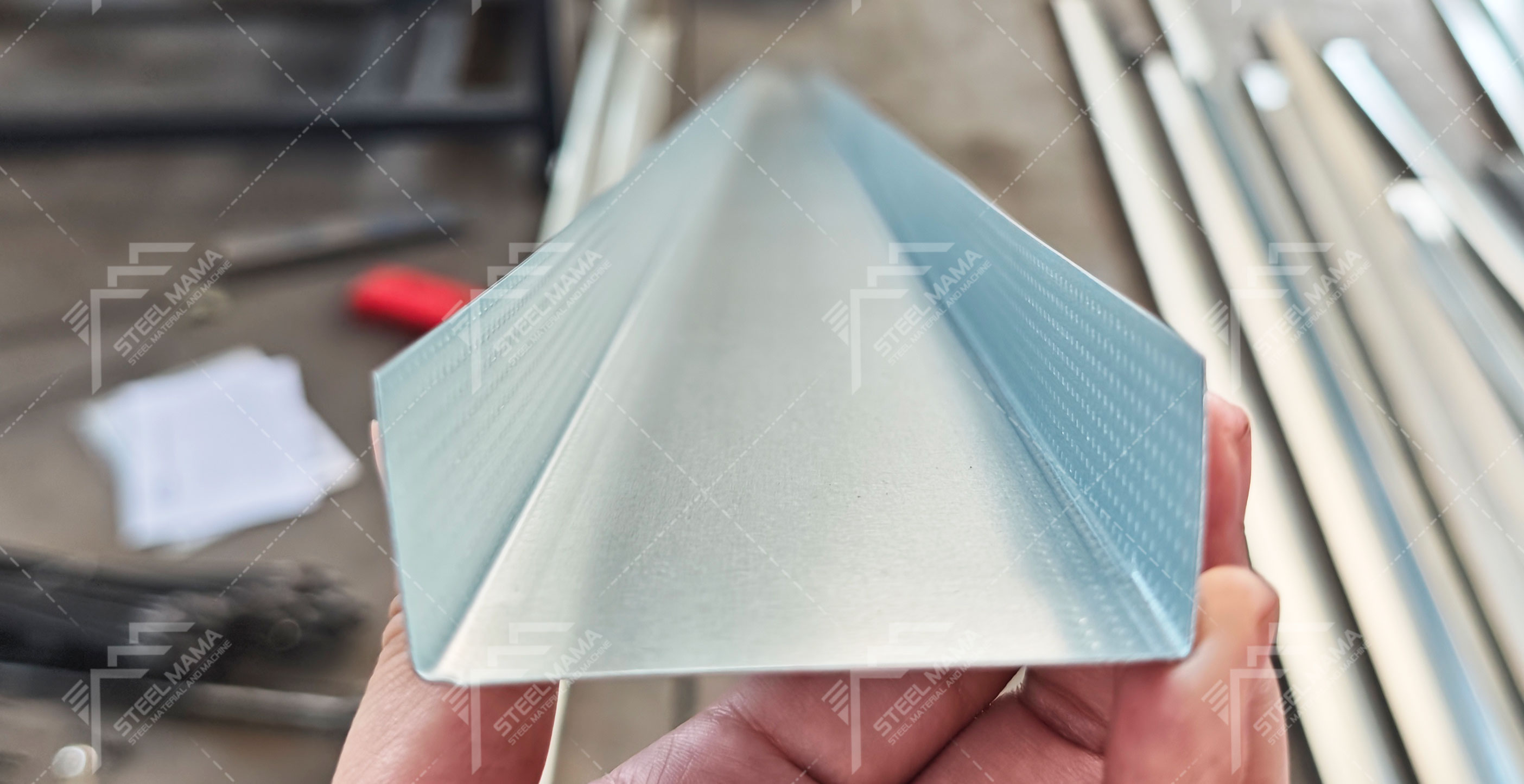

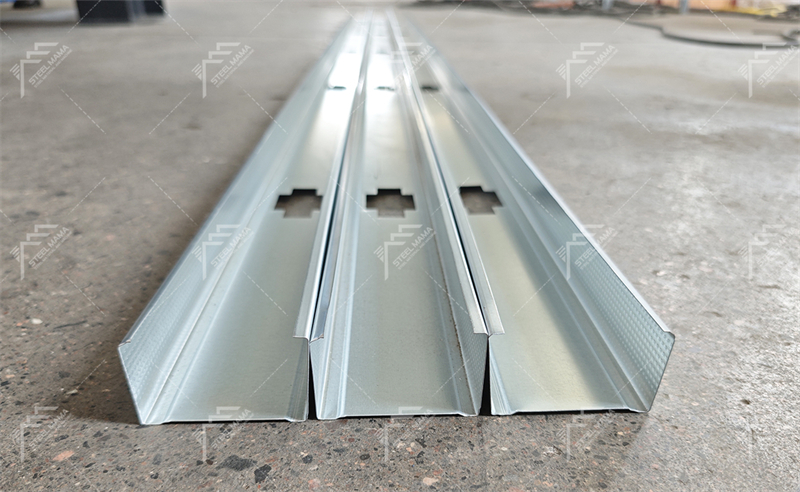

The combination of C studs and U tracks is considered the "gold standard" in drywall construction. The C stud forms the vertical structural support, while the U track acts as the header and footer. This interlocking system creates a rigid framework that is fire-resistant, non-combustible, and resistant to termites and mold. A profile keel roll forming machine designed to handle both shapes is therefore a "2-in-1" investment that maximizes your factory floor space while doubling your product catalogue.

Conclusion: Elevate Your Production with Advanced Roll Forming Technology

The demand for lightweight steel framing is projected to grow exponentially as the world shifts toward sustainable and rapidly constructible building methods. By investing in a high-performance metal stud roll forming machine, you are positioning your business at the forefront of this construction evolution. The benefits are clear: lower labor costs, reduced material waste, and a superior product quality that architects and builders trust.

If you are ready to enhance your manufacturing capabilities, contact us today for a quote on our latest range of roll forming machines. Whether you need a standard model or a custom-engineered solution, our roll forming making machines are built to deliver decades of reliable service. Get a Free Quote Now and take the first step toward maximizing your production efficiency with the industry's most durable C stud and U track manufacturing systems.

For more detailed technical specs or to request a quote based on your specific profile measurements, you can explore offerings on global industrial marketplaces like Alibaba.
