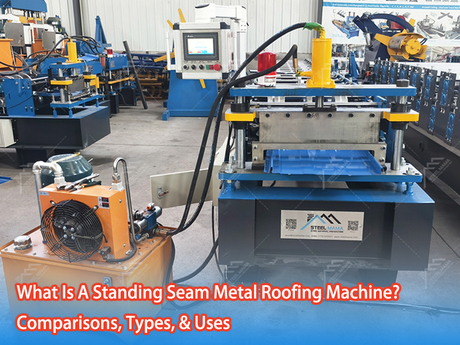

What Is a Standing Seam Metal Roofing Machine? Comparisons, Types, & Uses

If you are in the metal construction or architectural industry, you have likely heard the term standing seam metal roofing machine. But what exactly is this piece of equipment, and why is it considered the backbone of modern metal roofing projects? In this comprehensive guide, we will break down the definition, compare different models, explore the various types of standing seam metal roofing machines, and outline their primary uses in the field. Whether you are a contractor, a builder, or a property owner, understanding this machinery is the first step toward a durable, weather-tight roof.

What Is a Standing Seam Metal Roofing Machine?

At its core, a standing seam metal roofing machine is a specialized roll-forming machine designed to convert flat metal coils (usually steel, aluminum, or copper) into interlocking roof panels with raised vertical legs, or "seams." The machine uses a series of rollers to gradually bend and shape the metal into the distinctive profile that defines a standing seam roof.

Unlike traditional exposed fastener panels, a standing seam metal roofing system created by these machines features hidden fasteners. This means the clips that secure the panel to the roof deck are concealed beneath the seams. The result is a sleek, modern aesthetic that also excels in performance.

Key Features of These Machines

• Portability: Most modern standing seam metal roofing machines are mobile, allowing contractors to bring the machine directly to the job site.

• Precision: The roll-forming process ensures consistent panel width, height, and curvature.

• Length Flexibility: They can produce panels in custom lengths, minimizing waste and reducing on-site end-laps.

The Importance of On-Site Roll Forming

One of the most significant innovations in the industry is the mobile standing seam metal roofing machine. By manufacturing panels on-site, contractors eliminate the logistical nightmare of transporting 40-foot panels on highways. This capability dramatically reduces shipping costs, prevents transportation damage, and allows for immediate installation adjustments. If you are estimating a large-scale commercial project, investing in or renting a standing seam metal roofing machine is almost always a cost-effective decision.

Comparisons: Portable vs. Stationary Machines

When choosing equipment, it is essential to understand the differences between the primary configurations. Here is a direct comparison between portable and stationary standing seam metal roofing machines:

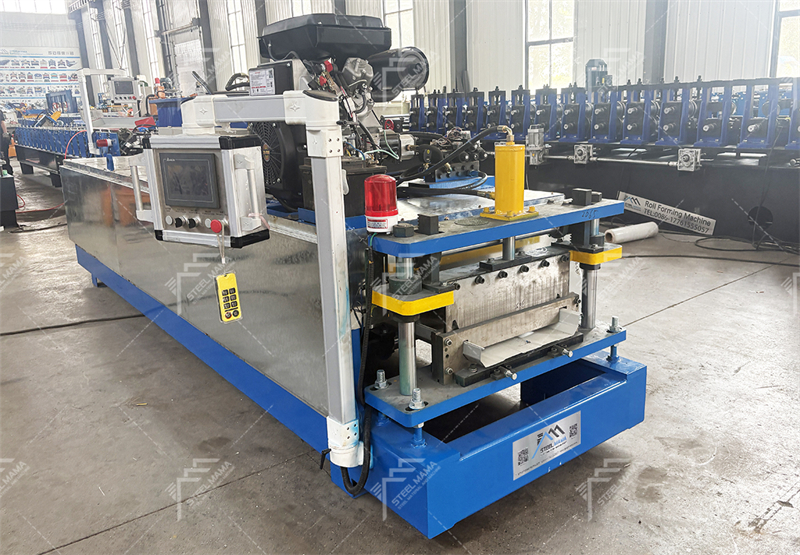

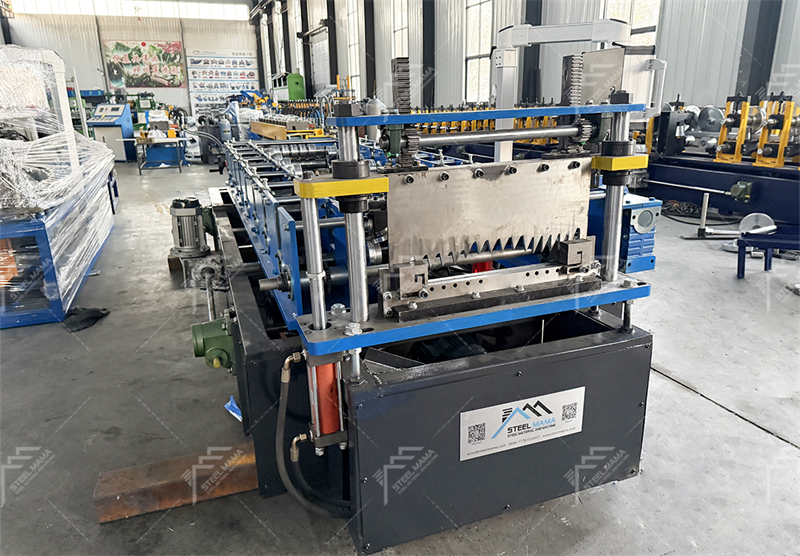

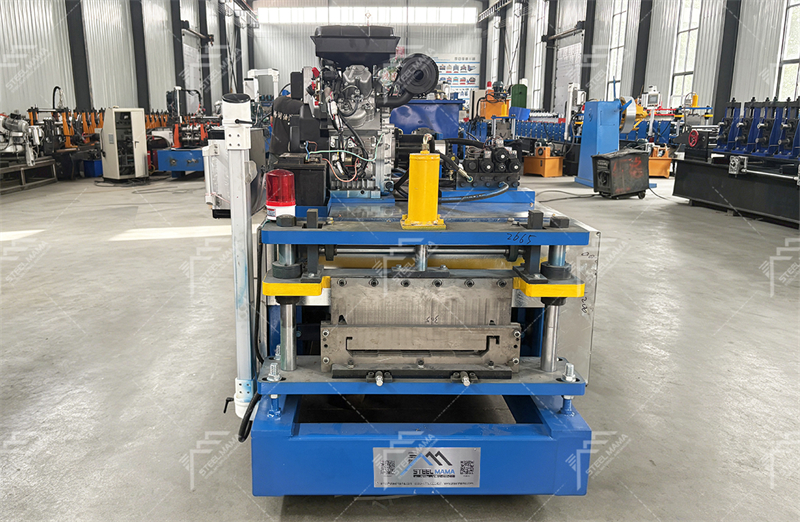

1. Portable Machines (Trailer-Mounted)

• Mobility: High. Towed by a standard pickup truck.

• Ideal For: Residential retrofit, small-to-medium commercial buildings, and remote job sites.

• Power Source: Typically powered by a diesel engine or a 3-phase electric motor.

• Production Speed: Moderate. Designed for efficiency without overwhelming the installation crew.

• Cost: Lower initial investment compared to industrial stationary models.

2. Stationary Machines (Shop-Based)

• Mobility: None. Permanently installed in a manufacturing facility.

• Ideal For: Large manufacturing plants, high-volume production, and OEM panel suppliers.

• Power Source: Heavy-duty electric motors.

• Production Speed: Very high. Can produce thousands of feet per hour.

• Cost: High capital expenditure.

The Verdict: For 90% of roofing contractors, the portable standing seam metal roofing machine is the winner. It offers the flexibility to tackle diverse jobs while maintaining the quality of a factory-produced panel.

Standing Seam Panel Profile Types

Not all standing seam panels are created equal. To produce different profiles, you need a machine configured with specific roller dies. Here are the most common types of standing seam metal roofing machines based on the panel profile they produce:

One of the most significant selling points of standing seam metal roofing is the variety of choices and options for customers. These choices stretch far beyond just the panel’s color to include the length, width, profile, shape, thickness, etc. One of these choices is the panel profile type.

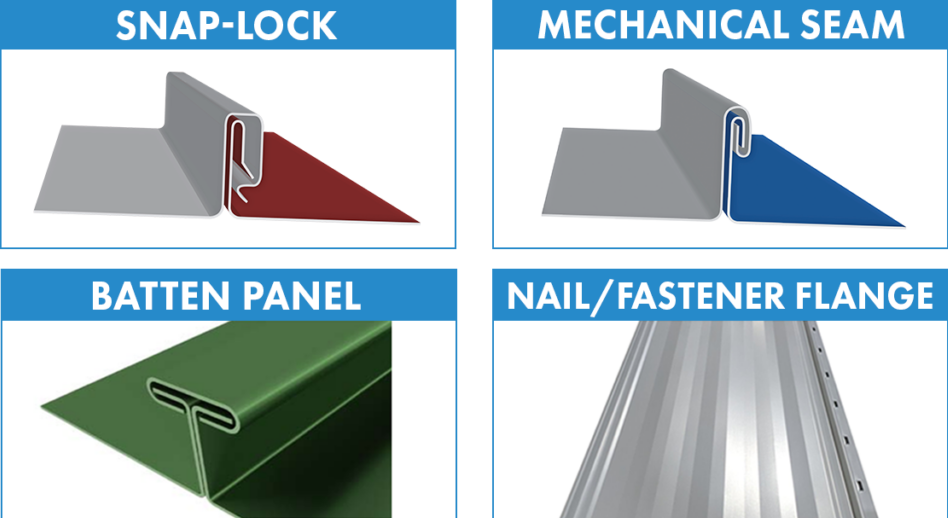

A panel profile refers to the shape and way two or more panels are seamed together. Depending on what type of roof you have, how steep it is, what environment your property is in, and various other factors, it will dictate what profile you should pick with the help of a contractor or architect. Many panel profiles comprise the standing seam category, including snap-lock, mechanical seam, batten panel, and nail/fastener flange.

Snap-Lock Profiles

Snap-lock profiles consist of panels that have been carefully rollformed with specifically shaped edges, a male and female leg, that snap together and do not require hand or mechanical seaming during installation. Snap-lock profiles are attached to the roof deck using a clip that attaches to the seam and fastens underneath the panel. Fastener flange panels use a similar locking mechanism; however, we do not consider fastener flange a snap-lock because true snap-locks allow the system to float freely with its clip system.

Snap-lock Quick Facts:

Snap-lock systems should only be installed on roof pitches (slope) of 3/12 and above unless otherwise approved by the manufacturer.

Snap-lock panels can be used in any environment as long as they’re installed correctly.

These systems require less labor and are generally cheaper to install because no mechanical seaming is required.

Engineered snap-lock panel systems­ deliver higher performance, unlike non-engine­ered versions.

Mechanical Lock Profiles

Mechanically seamed panels are also rollformed with specific edges that line up with each other. Once the two panels are engaged, a hand or mechanical seamer bends the edges and locks the panels together. There are two different versions of mechanical seams: Single lock 90-degree seams and double lock 180-degree seams.

Single Lock (90-degree seam) Quick Facts:

Single lock refers to ONE fold of the seam (or 90 degrees).

While single lock profiles won’t perform as well as a double lock, the single lock still performs well in milder environments. Again, check to ensure the engineering allows a single lock to be used.

Single locked systems require less labor, and it’s easier to replace a damaged panel than double lock profiles.

Double Lock (180-degree seam) Quick Facts:

Double lock mechanical systems feature TWO folds of the seam (or 180 degrees).

Double lock systems are suitable for low-slope applications needing extra weather-tightness.

2-inch double lock profile: Can generally be installed down to a .5/12 pitch with in-seam sealant (based on geography).

1.5-inch double lock profile: Can generally be used down to a 1/12 pitch with in-seam sealant (based on geography).

Double lock panels perform better; plus, there is less chance for panels to come unseamed.

Double lock systems are good choices for properties in cold weather areas with freezing and thawing. As snow/ice freezes and thaws, it also expands and contracts, which could potentially disengage a snap-lock profile.

Double lock panels are more labor-intensive to replace.

You should use an expansion clip with a mechanical lock profile when possible.

Common Uses and Applications

The uses for a standing seam metal roofing machine extend far beyond simple residential roofs. Their versatility makes them indispensable in the construction industry. Here are the primary uses:

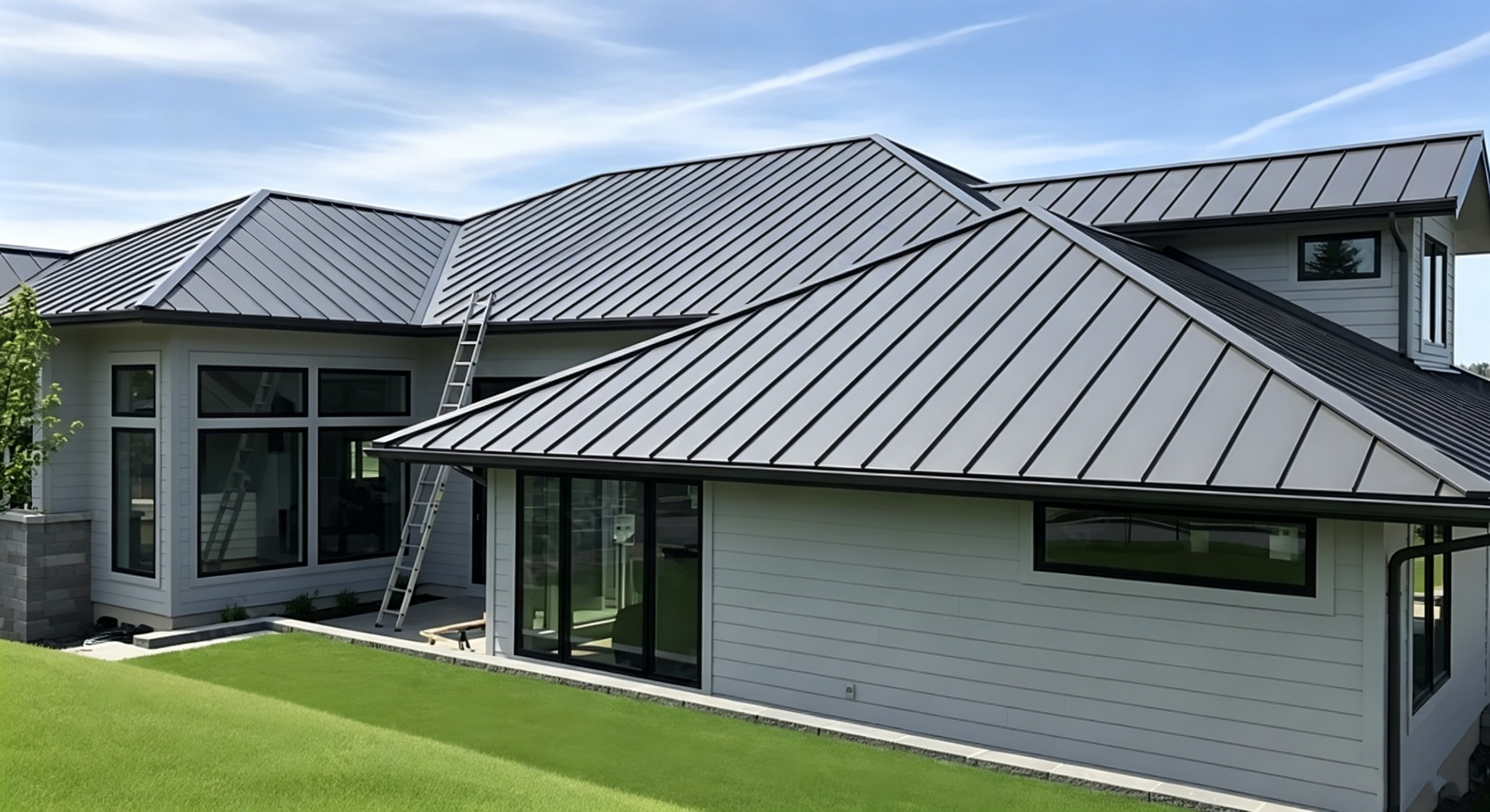

1. Residential Roofing

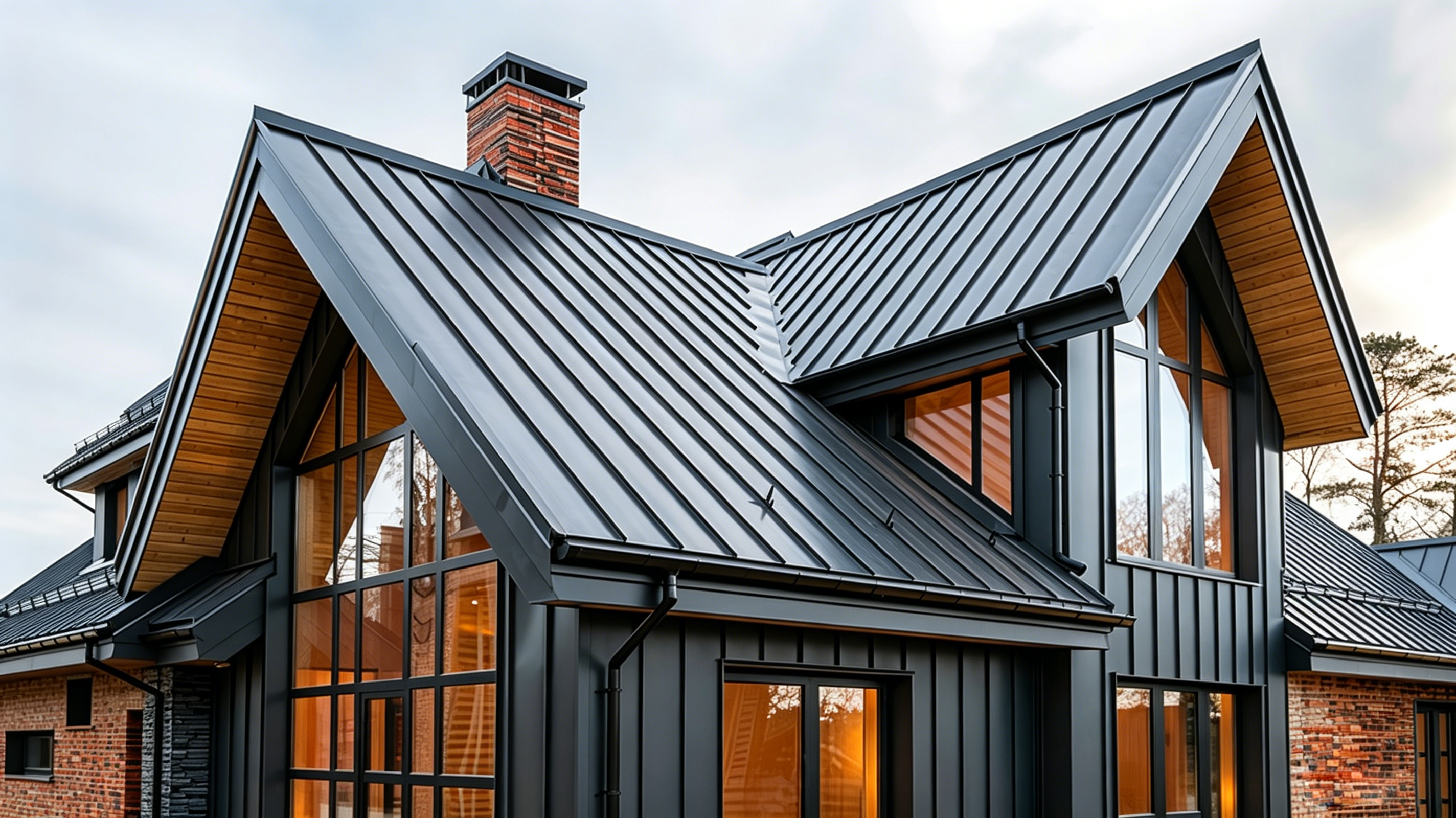

The most common use is for high-end homes. The clean lines of a standing seam roof increase curb appeal and home value significantly. Because the machine produces panels to the exact length of the roof rake, there are no horizontal overlaps, drastically reducing the risk of leaks over the home's lifetime.

2. Commercial and Industrial Buildings

Shopping centers, warehouses, and office complexes benefit from the longevity of these panels. A standing seam metal roofing machine can produce panels that span up to 60 feet, which is perfect for the expansive roofs of big-box retailers. The hidden clips allow the metal to expand and contract with temperature changes, preventing oil-canning and stress fractures.

3. Agricultural Structures

Barns, stables, and grain silos frequently use standing seam panels because they are resistant to corrosive elements like ammonia and moisture. The high seams allow for heavy snow loads to slide off, preventing structural collapse during harsh winters.

4. Solar Panel Integration

One of the most modern uses of this machine is creating roofs that are ready for solar PV systems. The standing seams act as a perfect clamping point for solar panels. No roof penetrations are required for installation, which maintains the integrity of the roof warranty. If you are offering solar-ready installations, a standing seam metal roofing machine is a non-negotiable asset.

Comparison: Standing Seam vs. Corrugated Metal

We have focused heavily on the machine, but it is worth comparing the final product. Here is a quick comparison to highlight why using a standing seam metal roofing machine is often superior to buying corrugated panels:

Selecting the Right Machine for Your Business

When deciding which standing seam metal roofing machine to purchase, consider these factors:

• Gauge Capacity: Can the machine handle 24-gauge steel, or does it max out at 26-gauge? Ensure it fits your project requirements.

• Speed: A speed of 30-50 feet per minute is standard for portable machines.

• Material Compatibility: Ensure the roller material (usually 52100 bearing steel) is hard enough to withstand aluminum without galling.

• PLC Controls: Modern machines feature user-friendly Programmable Logic Controllers that allow operators to easily change panel lengths and count pieces.

Conclusion

The standing seam metal roofing machine is more than just a roll-former; it is a strategic asset for any roofing professional. Understanding the types available—from snap-lock to mechanical lock—and comparing portable versus stationary models allows you to make an informed decision that aligns with your business goals. Whether you are securing a high-value residential contract or outfitting a massive commercial warehouse, the uses of this machinery guarantee a superior product that stands the test of time.

By investing in the right standing seam metal roofing machine, you are not just buying equipment; you are buying capability, speed, and the promise of a leak-free roof for decades to come.
