What Is the Difference Between Trapezoidal and Corrugated Roll Forming Machines?

When setting up a metal roofing or cladding production line, one of the most critical decisions you will face is choosing between a trapezoidal roll forming machine and a corrugated roll forming machine. While both are used to transform flat metal coils into profiled sheets, their output shapes, structural applications, and mechanical configurations differ significantly. Understanding these differences is essential for purchasing the right equipment to meet your local market demand.

Defining the Two Profiles

Before comparing the machinery, it is necessary to understand the final products.

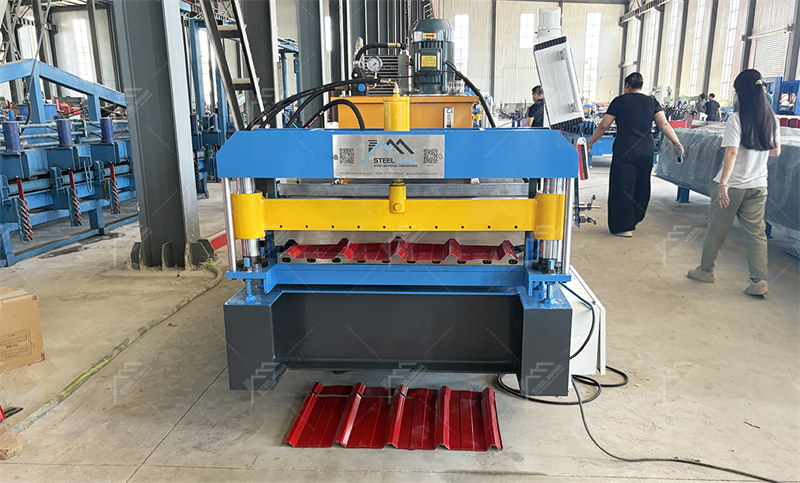

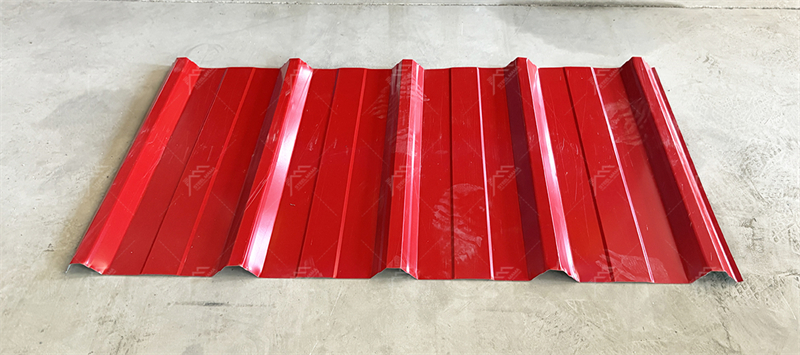

A trapezoidal roll forming machine produces sheets with a distinct "trapezoid" shape. The ribs have flat tops and bottoms with angled sides, resembling a miniature staircase. This design offers high load-bearing capacity, making it ideal for roof decking and wall cladding on industrial buildings and warehouses.

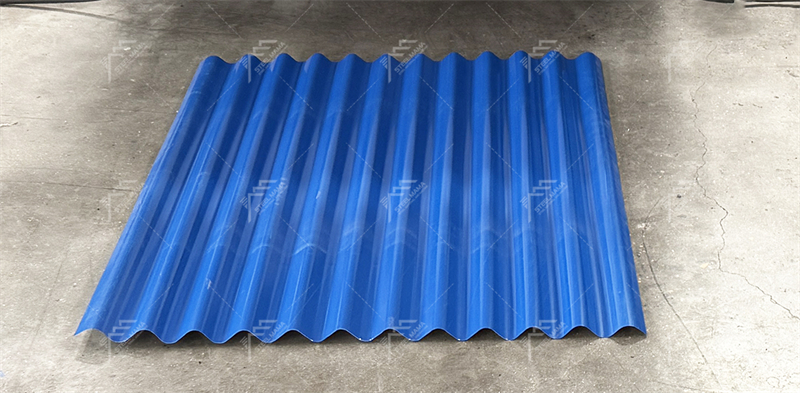

In contrast, a corrugated roll forming machine creates the classic sinusoidal wave pattern—smooth, curved arcs that go up and down like an ocean wave. This profile is more flexible and is traditionally used for agricultural sheds, residential roofing, and decorative facades.

Key Differences in Roll Forming Technology

1. Roller Design and Configuration

The most significant mechanical difference lies in the roller stations. A trapezoidal roll forming machine requires precision-machined rollers with flat segments and sharp corners to form the distinct flat plateaus. These rollers typically involve more passes (10 to 24 stations) to gradually bend the metal without cracking the steel’s coating.

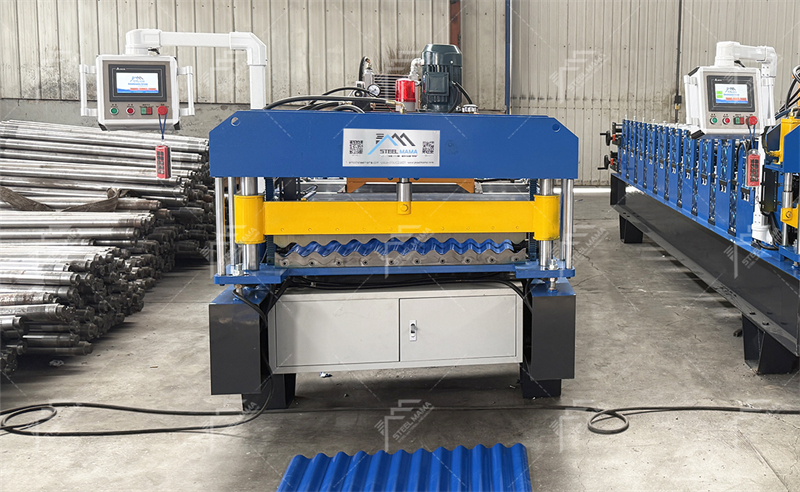

A corrugated roll forming machine, however, uses curved rollers that gradually press the metal into a smooth, continuous wave. Because the bending is less aggressive, corrugated machines often have fewer roller stations (6 to 16 stations), making them slightly faster but less rigid in the final product.

2. Material Thickness and Strength

If you plan to work with thicker, high-tensile steel, the trapezoidal roll forming machine is the better choice. Trapezoidal profiles can be made from 0.5mm to 1.2mm steel due to their reinforced geometry. In contrast, a corrugated roll forming machine is optimized for thinner gauges (0.3mm to 0.8mm) because the curved waves are structurally weaker under heavy vertical loads.

3. Finished Product Application

Trapezoidal roll forming machines are the industry standard for structural roofing. The sharp bends create high section modulus, allowing the panels to span longer distances between purlins. Therefore, these machines are popular for airports, factories, and gymnasiums.

Corrugated roll forming machines are preferred for perimeter fencing, canopy roofs, and retrofitting old barns. The smooth waves are visually softer and allow for overlapping side seams without sealants in low-slope applications.

4. Speed and Maintenance

Generally, a corrugated roll forming machine can operate at higher line speeds (up to 40m/min) because the forming process involves less friction and no sharp directional changes. However, a trapezoidal roll forming machine usually offers better quick-change capabilities for different rib heights and widths, though it may run slightly slower (15-25m/min) to maintain precision.

Which One Should You Buy for Your Business?

To rank for keywords like "trapezoidal vs corrugated roll forming machine" or "best metal roofing machine for sale", you must match the machine to your client base.

• Choose a trapezoidal roll forming machine if: Your customers ask for structural roof decks, mezzanine floors, or heavy-duty industrial panels. These machines command a higher resale value and produce panels suitable for snow or wind-heavy regions.

• Choose a corrugated roll forming machine if: Your market demands lightweight, flexible sheets for small sheds, DIY projects, or architectural accents. The entry cost for corrugated machines is often lower, making them ideal for start-ups.

Conclusion

The difference between a trapezoidal roll forming machine and a corrugated roll forming machine goes beyond aesthetics—it is about geometry, strength, and production speed. While the trapezoidal machine focuses on rigidity and structural integrity, the corrugated machine prioritizes flexibility and speed.

By identifying whether your local market needs industrial decking or classic wave sheeting, you can select the roll forming equipment that maximizes your return on investment. For further assistance on choosing the right trapezoidal roll forming machine or corrugated roll forming machine, contact our sales team today.
