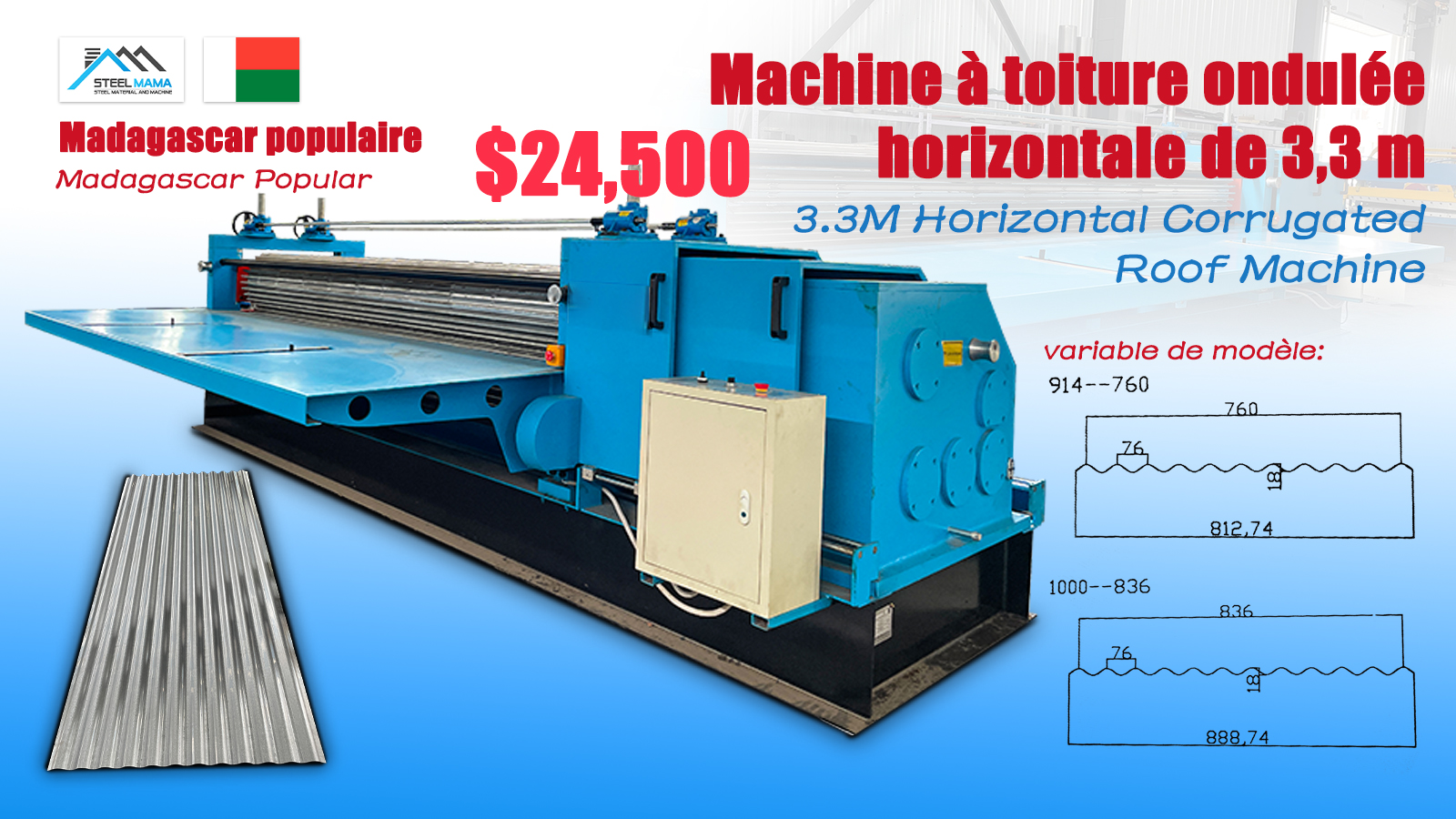

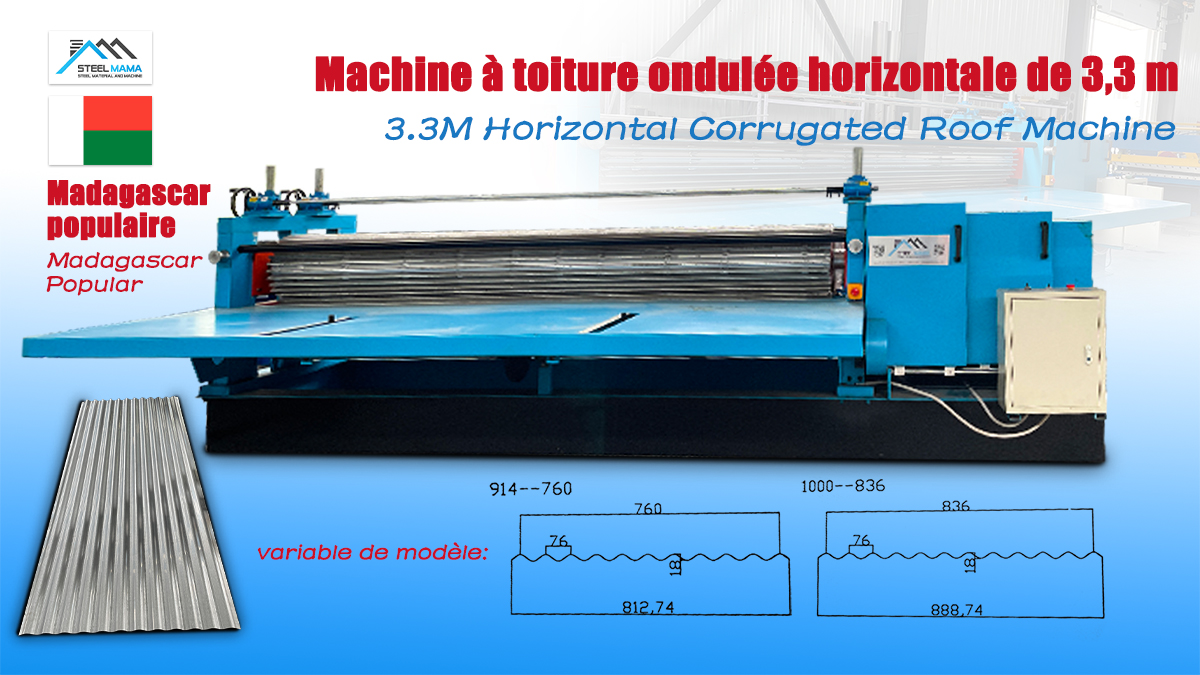

High Quality Barrel Type Corrugated Profile Roof Sheet Roll Forming Machine For Madagascar
Machine components list: |
Name | NO. | Unit |
1.De-coiler | 1 | set |
2.Forming machine | 1 | set |
4.Cutting device | 1 | set |
5.PLC control box | 1 | set |
6.Hydraulic pump station | 1 | set |
7.Production support table | 1 | set |
8.Pre-sliding cutter | 1 | set |
Main technical parameter: |
Max. Loading Capacity: | 3000 kgs |
Material Thickness: | 0,25-0,6 mm PPGI y GI |
Speed: | 12-25m/min |
Type: | PLC Frequency Control System with touch screen |
Length Error: | ±2 mm |
Language: | English,Chinese |
Voltage: | 380v/50HZ, 3Phase (it depends on customer requirement) |
Wires/cables | 4-6mm²(length according to workshop) |
Labor cost | 2 workers |
Tools | Spanners and screwdriver |
Lift device | 3-5t forklift or crane |
Installation and Training
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets,
