Zimbabwe Double Layer Machine
Availability: | |
---|---|
| |
Product Description

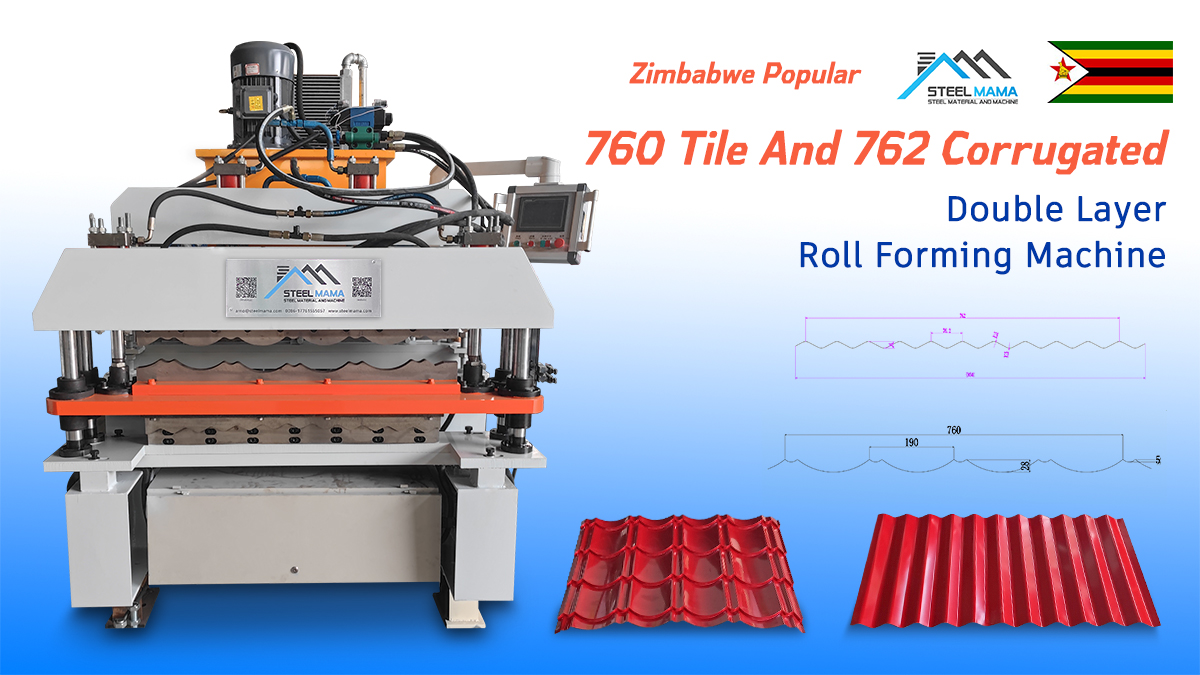

High Standard 762 Corrugated And 760 Tile Steel Roof Sheet Roll Forming Machine For Zimbabwe
Machine components list: | ||
Name | NO. | Unit |
1.De-coiler | 1 | set |
2.Forming machine | 1 | set |
3.Cutting device | 1 | set |
4.PLC control box | 1 | set |
5.Hydraulic pump station | 1 | set |
6.Production support table | 1 | set |
7.Pre-sliding cutter | 1 | set |
Main technical parameter: | |
Max. Loading Capacity: | 5 t |
Material Thickness: | 0,25-0,8 mm PPGI y GI |
Speed: | 10-20m/min |
Type: | PLC Frequency Control System with touch screen |
Length Error: | ±2 mm |
Language: | English,Chinese |
Voltage: | 380v/50HZ, 3Phase (it depends on customer requirement) |
Wires/cables | 4-6mm²(length according to workshop) |
Labor cost | 2 workers |
Tools | Spanners and screwdriver |
Lift device | 3-5t forklift or crane |
A Double Layer Roll Forming Machineis an advanced and highly efficient type of roll forming equipment designed to produce two separate profiles simultaneously from a single or two separate strips of metal.
What is a Double Layer Roll Forming Machine?
A 760 Tile And 762 Corrugated Double Layer Roll Making Machine is a state-of-the-art piece of industrial machinery designed to form two metal strips into precise custom profiles at the same time. Unlike a standard single-line roll forming machine, this system features a double-head design with two parallel forming paths—one upper and one lower. This allows for the simultaneous processing of two identical or different profiles from a single wide strip or two separate coils, significantly boosting your manufacturing productivity.
This metal double-layer roll forming machine is customized for a customer in Zimbabwe.Our double-layer roll forming systems are indispensable across numerous industries for producing:
Building & Construction: Roofing and wall panels, steel studs and tracks (C/U channels), ceiling grid systems, and garage door sections.
Installation and Training
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets,
