What is the Difference Between a Self Lock Machine and a Standing Seam Roll Forming Machine?

If you are sourcing equipment for the U.S. metal roofing market, you have likely encountered two similar but distinct terms: Self Lock machine and standing seam roll forming machine. While both produce metal panels for roofs, they are not interchangeable.

Understanding the difference between a Self Lock machine and a standing seam roll forming machine is critical. Choosing the wrong machine can lead to installation failures, code violations, and costly project delays.

Below, we break down the key differences in locking mechanism, panel profile, installation method, and typical U.S. applications.

1. Locking Mechanism: No Tools vs. Professional Seamers

The most fundamental difference between a Self Lock machine and a standing seam roll forming machine lies in how the panels lock together.

• Self Lock Machine: Produces panels with a snap-lock or press-lock seam. The male and female legs simply snap together by hand or with a light rubber mallet. No mechanical seamer is required. This is why it is called “self” locking.

• Standing Seam Roll Forming Machine: Produces panels that require a power seamer or hand seamer to close the seam. The interlocking legs are designed for mechanical closure, which creates a much tighter, stronger connection.

Key takeaway: A Self Lock machine is tool-free; a standing seam roll forming machine requires a seamer.

2. Panel Profile Design

When asking what is the difference between a Self Lock machine and a standing seam roll forming machine, look at the finished panel’s cross-section.

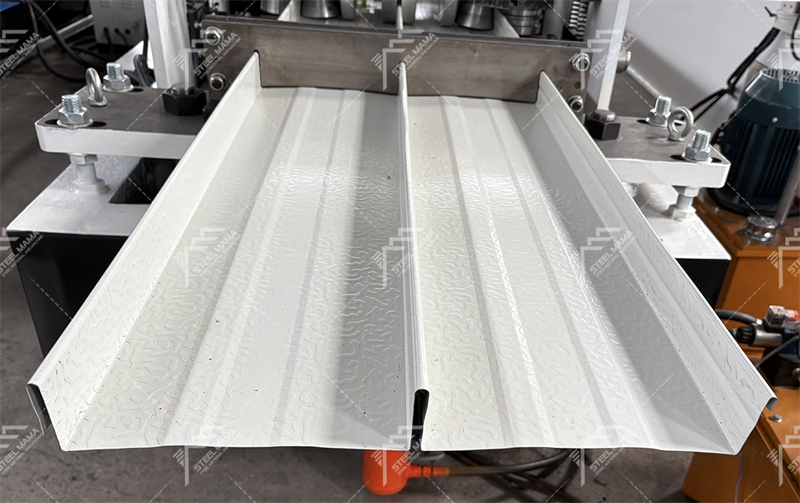

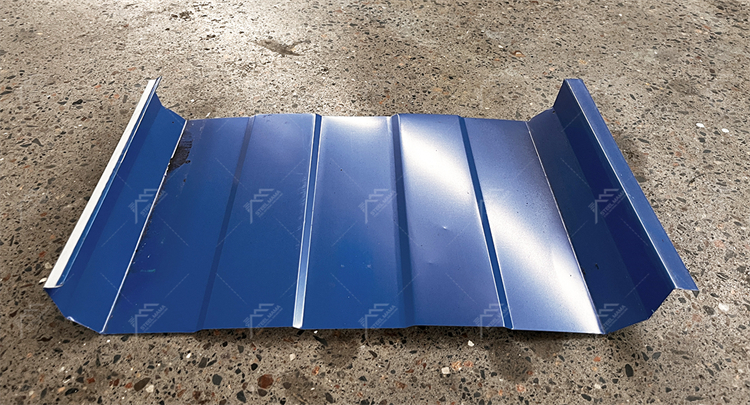

The self lock panel relies on a spring-clip leg. The standing seam panel uses a mechanically folded leg that rises higher above the panel flat.

3. Installation Method and Labor

U.S. contractors care deeply about installation speed and labor costs. Here, the difference between a Self Lock machine and a standing seam roll forming machine becomes very practical.

• Self Lock Machine panels:

  • Installed 30–50% faster

  • Ideal for DIY or small crew projects

  • Lower labor cost per square foot

• Standing Seam Roll Forming Machine panels:

  • Slower installation (requires seaming tool)

  • Requires trained operators

  • Higher labor cost but much stronger seam

4. Wind Uplift Resistance (Critical for U.S. codes)

In hurricane-prone states like Florida, Texas, and Louisiana, wind uplift is a top concern.

• Self Lock panels: Typically rated for ASTM E1592 up to 90–120 mph. Suitable for residential and light commercial.

• Standing seam panels (mechanically seamed): Rated for 150+ mph and often meet Miami-Dade County (Florida Building Code) approvals.

So, when a U.S. engineer asks what is the difference between a Self Lock machine and a standing seam roll forming machine, the answer often comes down to: wind rating.

5. Typical Applications in the U.S. Market

6. Cost Difference

Budget is always a factor. The difference between a Self Lock machine and a standing seam roll forming machine in terms of price is significant.

• Self Lock machine (basic, narrower width, lighter gauge): 30,000–30,000–60,000 USD

• Standing seam roll forming machine (heavy duty, mechanical lock, 24–26 gauge steel): 70,000–70,000–150,000+ USD

7. Can One Machine Do Both?

A common question: Can a standing seam roll forming machine also produce self lock profiles?

Generally, no. The roll former’s roller stations are fixed in a specific sequence. A machine built for mechanical lock standing seam cannot produce snap lock self lock panels, and vice versa. However, some advanced standing seam roll forming machines offer interchangeable roll sets—but this is rare and expensive.

Which Machine Should You Market?

To answer what is the difference between a Self Lock machine and a standing seam roll forming machine in one sentence:

A Self Lock machine is faster and cheaper for residential/lower-wind jobs; a standing seam roll forming machine is stronger and code-required for commercial/high-wind projects.

Quick Recommendation Table for Buyers

1. What is a standing seam roll forming machine used for?

A standing seam roll forming machine is used to produce metal roofing panels with raised interlocking seams. These panels are widely used in residential, commercial, and industrial roofing projects across the U.S., especially in high-wind and heavy-snow regions.

2. What types of standing seam profiles can a standing seam roll forming machine produce?

Depending on the roller set, a standing seam roll forming machine can produce snap lock profiles, mechanical lock profiles, nail strip profiles, and double lock profiles. Some advanced machines also support asymmetrical panels and custom rib heights from 0.75″ to 3″.

3. What is the difference between a snap lock and a mechanical lock standing seam machine?

A snap lock standing seam roll forming machine produces panels that snap together by hand without tools. A mechanical lock standing seam roll forming machine requires a power seamer to close the seam, offering much higher wind uplift resistance—often over 150 mph, making it suitable for hurricane-prone states like Florida and Texas.

4. What material gauges can a standing seam roll forming machine handle?

Most U.S.-grade standing seam roll forming machines can process 24-gauge, 26-gauge steel, as well as aluminum and copper. Heavy-duty models may support 22-gauge steel for industrial applications. Always check the machine’s specified gauge range before purchasing.

5. How fast is a standing seam roll forming machine?

Production speed varies by model. Typical standing seam roll forming machines operate at 15–40 feet per minute. High-speed industrial versions can reach 60+ feet per minute. For most U.S. contractors, 30–40 ft/min is ideal for on-site or shop production.

6. Can a standing seam roll forming machine produce both roof and wall panels?

Yes, many standing seam roll forming machines can produce panels for both roofs and walls. However, wall panels often require a different profile geometry (such as T-panel or flat wall profile). Always confirm with the manufacturer if the machine includes interchangeable roll sets for wall applications.
