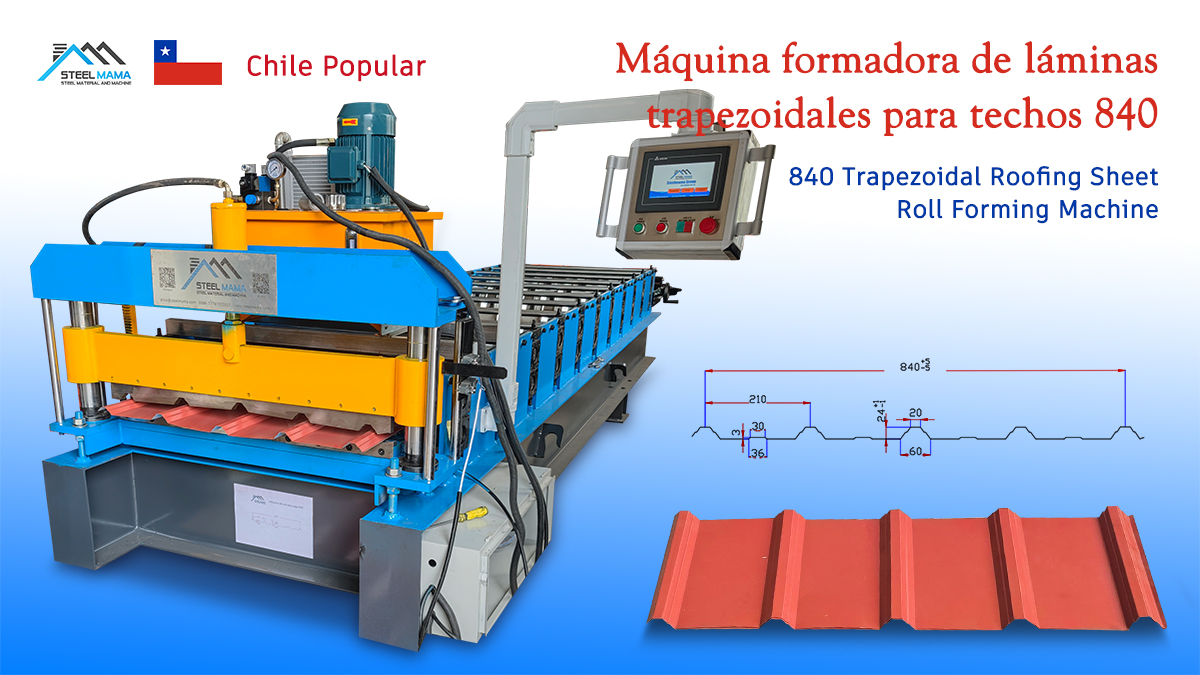

Chile Popular High Performance 840 Trapezoidal Roofing Sheet Roll Forming Machine
Lista de componentes de la máquina: |
Nombre | NO. | Unit |
1.Desbobinador hidráulico | 1 | set |
2.maquina formadora | 1 | set |
3.Cortador pre-deslizante | 1 | set |
4.dispositivo de corte | 1 | set |
5.caja de control del autómata | 1 | set |
6.Estación de bombeo hidráulico | 1 | set |
7.Mesa de apoyo a la producción | 1 | set |
Parámetro técnico principal: |
máx. Capacidad de carga: | 5 t |
Grosor del material: | 0,25-0,6 mm PPGI y GI |
Velocidad: | 10-20m/min |
Tipo: | Sistema de control de frecuencia PLC con pantalla táctil （con alarma y control remoto） |
Error de longitud: | ±2 mm |
Idioma: | español, inglés y chino |
Voltaje: | 220v/60HZ, 3 fases (depende de los requisitos del cliente) |
Alambres/cables: | 4-6mm² (longitud según taller) |
Coste laboral: | 2 trabajadores |
Instrumentos: | Llaves y destornillador |
Dispositivo de elevación: | Carretilla elevadora o grúa de 3-5t |
What is an 840 Trapezoidal Roofing Sheet Roll Forming Machine?
An IBR metal roofing sheet roll forming machine is a specialized piece of equipment used to fabricate roofing sheets with a trapezoidal profile. These sheets are widely recognized for their strength, durability, and ability to withstand harsh weather conditions. The machine operates by continuously bending a coil of metal—such as galvanized steel, aluminum, or color-coated PPGI—into a precise trapezoidal shape through a series of rollers. The "840" denotes the specific profile width, making it a popular choice for both residential and commercial projects.
Advantages of Using an trapezoidal sheet roll forming machine
Superior Productivity: The machine's high-speed operation and automated features minimize manual intervention, reducing labor costs and increasing output.
Exceptional Sheet Quality: Produces sheets with uniform profiles and precise dimensions, ensuring excellent fit and finish during installation.
Durability and Strength: The trapezoidal design enhances the structural integrity of the sheets, making them ideal for roofs that require high load-bearing capacity.
Cost-Effectiveness: By optimizing material usage and reducing waste, it helps manufacturers maximize profits.
Ease of Maintenance: Designed for simplicity and reliability, the machine requires minimal upkeep, lowering long-term operational costs.
How to Choose the Right Roll Forming Machine
When selecting an 840 Trapezoidal Sheet Forming Machine, consider the following factors:
Production Capacity: Ensure the machine meets your daily output requirements.
Material Compatibility: Verify that it supports the types of metals you plan to use.
Automation Level: PLC-controlled systems offer greater precision and ease of use.
Instalación Capacitación
① Si los compradores visitan nuestra fábrica y revisan la máquina, le enseñaremos cómo instalar y usar la máquina, y también capacitaremos a sus trabajadores/técnicos cara a cara.
②Sin visitarnos, le enviaremos un manual de usuario y un video para enseñarle a instalar y operar.
③Si el comprador necesita que nuestro técnico vaya a su fábrica local, organice boletos de ida y vuelta.
