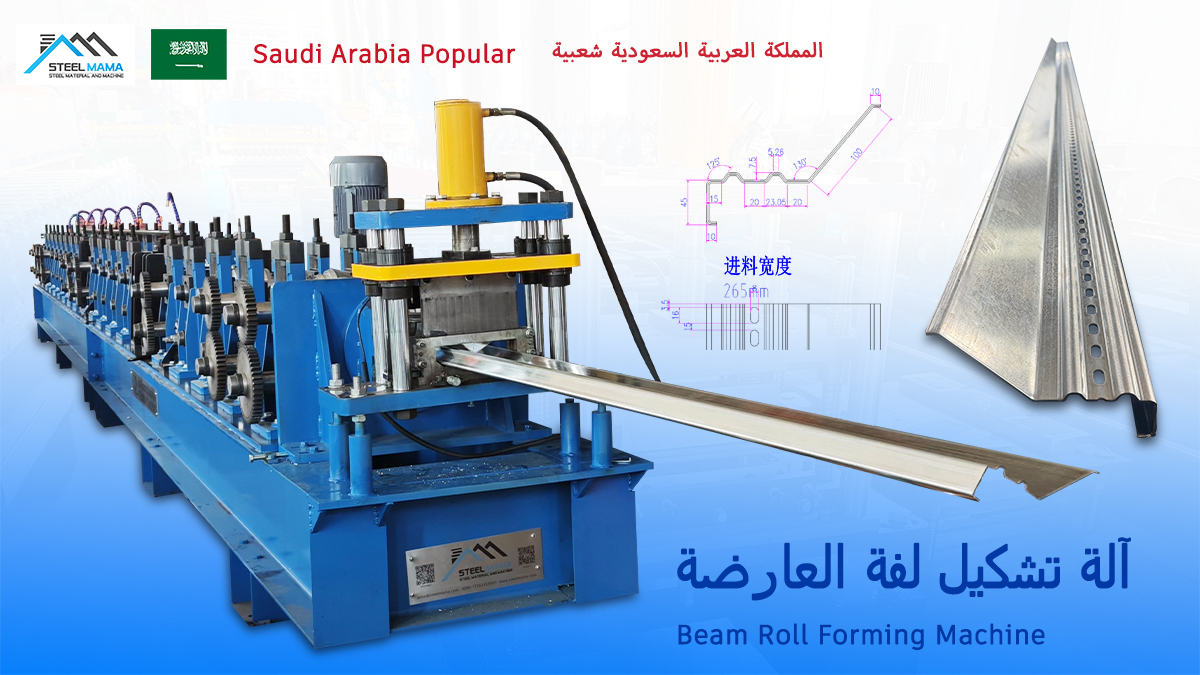

Saudi Arabia Premium High Performance Full Automatic Beam Roll Forming Machine
Machine components list: |
Name | NO. | Unit |
1.De-coiler | 1 | set |
2.Forming machine | 1 | set |
3.Cutting device | 1 | set |
4.PLC control box | 1 | set |
5.Hydraulic pump station | 1 | set |
6.Production support table | 1 | set |
7.Pre-sliding cutter | 1 | set |
8.Separate film Guard | 1 | set |
9.Leveling device | 1 | set |
Main technical parameter: |
Max. Loading Capacity: | 5 t |
Material Thickness: | 0,25-0,6 mm PPGI y GI |
Speed: | 10-15m/min |
Type: | PLC Frequency Control System with touch screen |
Length Error: | ±2 mm |
Language: | English,Chinese |
Voltage: | 380v/50HZ, 3Phase (it depends on customer requirement) |
Wires/cables | 4-6mm²(length according to workshop) |
Labor cost | 2 workers |
Tools | Spanners and screwdriver |
Lift device | 3-5t forklift or crane |
What Is a Beam Roll Forming Machine ?
A beam roll forming machine is a specialized industrial device used to form metal coils—typically steel, aluminum, or galvanized materials—into continuous, uniform beams with specific cross-sectional profiles. Through a series of rollers that gradually bend the material, this machine produces components such as I-beams, H-beams, C-purlins, and Z-purlins, which are essential for structural support in buildings, bridges, and machinery. The process is highly automated, ensuring precision and efficiency while minimizing material waste.
How to Choose the Right Metal Beam Roll Forming Machine：
When selecting a machine, consider:
Production Volume: Ensure it matches your daily output requirements (e.g., high-speed models for mass production).
Material Compatibility: Verify support for materials like galvanized steel or aluminum based on your projects.
Automation Level: PLC-controlled systems offer better precision and ease of use.
How a beam roll forming machine works :
Feeding: Flat metal sheets or coils are fed into the machine.
Progressive Bending: The metal strip passes through a series of forming stations, each containing multiple rollers.
Forming: Each pair of rollers gradually bends and shapes the metal, gradually shaping it into the desired beam profile.
Welding (optional): For closed-section beams such as box beams, a seam or welding device joins the sheet edges to form a sealed, load-bearing product.
Cutting and Unloading: The finished beams are then automatically cut to the required length and unloaded.
Installation and Training
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets,
